What is spring steel?

Spring steel is a name given to a wide range of steels used in the manufacture of springs, prominently in automotive and industrial suspension applications. These steels are generally low-alloy manganese, medium-carbon steel or high-carbon steel with a very high yield strength. This allows objects made of spring steel to return to their original shape despite significant deflection or twisting. For springs that are exposed to fatigue loads, high demands are placed on surface finish and inner cleanness (limitation of amount of non-metallic inclusions).

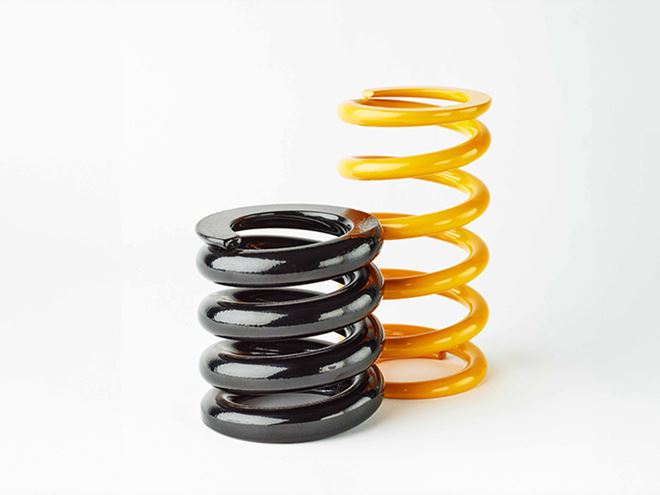

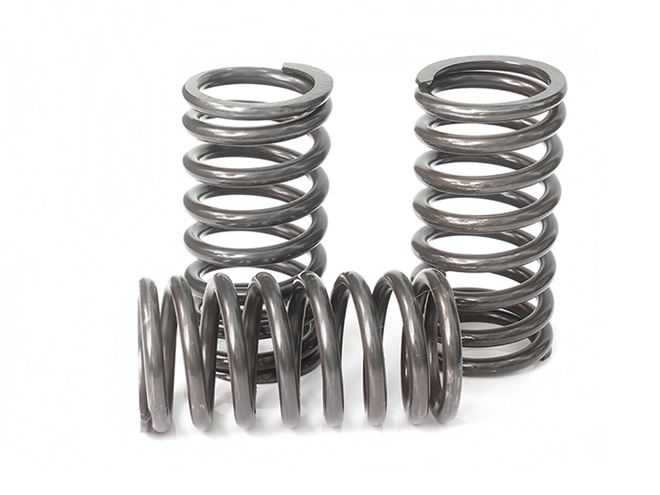

Informative image: Spring steel

Advantages of Spring Steel

The utilization of spring steel offers several advantages, making it a preferred choice for critical applications:

  1. High Yield Strength: Spring steel exhibits excellent yield strength, allowing it to withstand high stress and loads without permanent deformation.
  2. Fatigue Resistance: Its inherent resilience enables it to endure cyclic loading and repeated flexing without failure, ensuring longevity and reliability.
  3. Cost-Effectiveness: Spring steel's durability and longevity translate to reduced maintenance costs and enhanced operational efficiency over its lifespan.
  4. Wide Temperature Range: It retains its mechanical properties over a broad temperature range, making it suitable for applications in extreme environments.
  5. Versatility: Spring steel can be fabricated into various shapes and sizes, offering design flexibility to meet specific performance requirements.

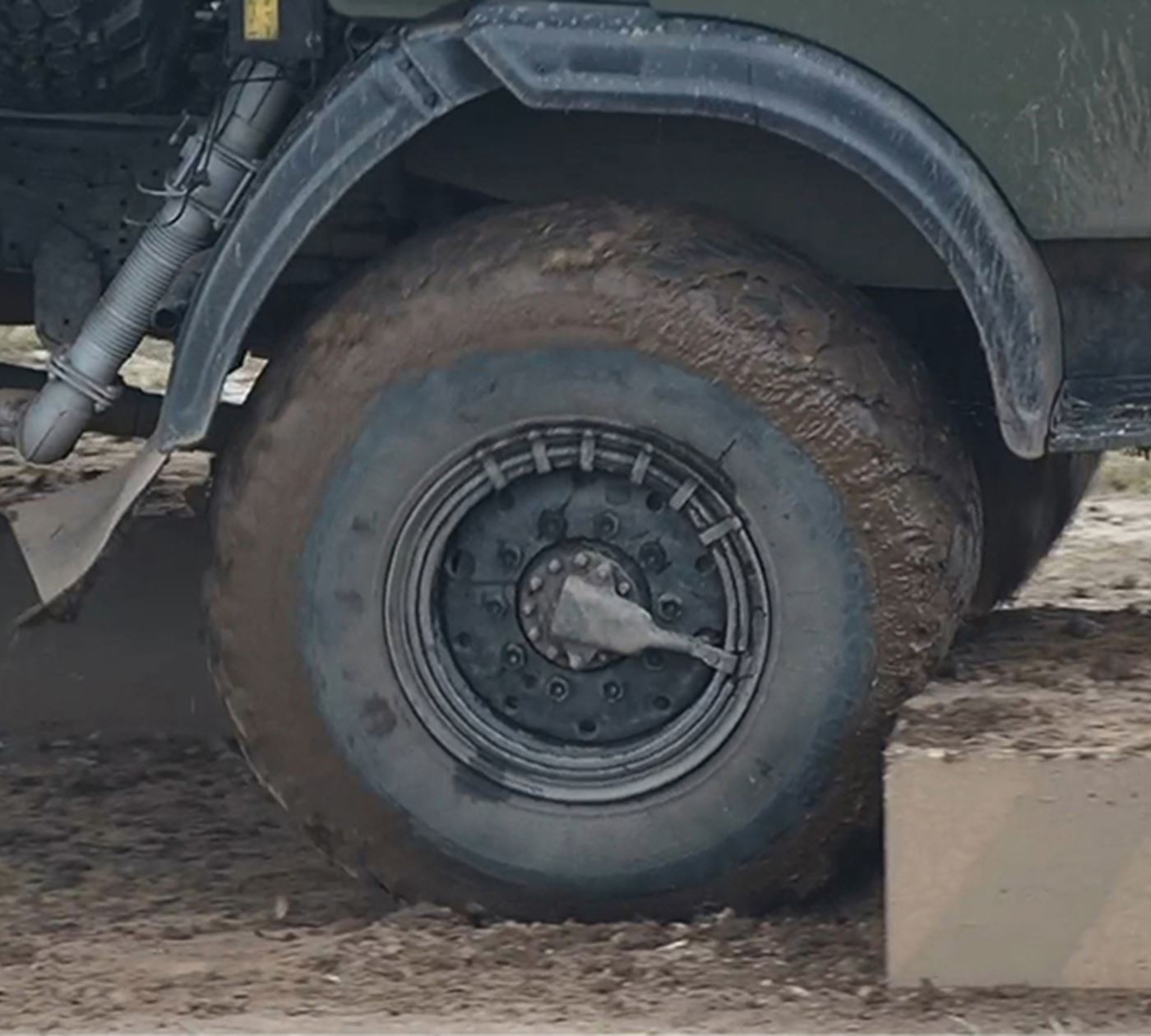

Tinsley Bridge x Ovako

Tinsley Bridge engineers decided to develop a torsion bar with slightly wider dimensions to replace the standard steel suspension torsion bar. However, because the standard spring steel grades used in torsion bars is susceptible to inclusions and other impurities, Tinsley Bridge needed a cleaner steel that could also be heat-treated to a higher stress level. So the company turned to Ovako’s Imatra mill, which was able to produce a clean, high-strength steel modified to meet Tinsley Bridge’s specifications.

Ovako production site Imatra

Contact us

Have a question about spring steel? Need some assistance with an order? Feel free to reach out to us by clicking below:

Contact our customer support team

Our team is committed to providing prompt and personalized assistance to ensure your satisfaction. We look forward to hearing from you!

EN-standard

Ovako

Typical analysis





C

Si

Mn

Cr

Mo

Ni

Other

33SiMnB7-3*

SB33S17B

0.33

1.7

0.9







B

38Si7

9040

0.38

1.6

0.7









51CrV4

593, 4292

0.51

0.2

0.9

1.1





V

52CrMoV4

4296

0.52

0.2

0.9

1.1

0.2



V

55Cr3

9257

0.55

0.2

0.9

0.9







56Si7

9084

0.56

1.8

0.8









56SiCr7

9071

0.56

1.8

0.9

0.3







60Cr3

5740

0.60

0.2

0.9

0.8







EN-standard designation followed by “*” is not an official EN standard grade but named according to the rules in EN 10027.
